“SDR” means standard dimension ratio and is the ratio of outside pipe diameter to wall thickness Source derived from ASTM Standards D1785, D2241, D2729, and F405 ALLOWANCE IN EQUIVALENT LENGTH OF PIPE FOR FRICTION LOSS.

Pe pipe sdr 11. Not literal dimensions Used to identify pipe and fitting sizes in plumbing Refers to the inside diameter of the pipe which can vary by thickness of the pipe The outside is a constant size For copper pipe the outside diameter is always 1/8" larger than the nominal size Example 1/2" nominal is always 5/8" OD. “SDR” means standard dimension ratio and is the ratio of outside pipe diameter to wall thickness Source derived from ASTM Standards D1785, D2241, D2729, and F405 ALLOWANCE IN EQUIVALENT LENGTH OF PIPE FOR FRICTION LOSS. Standard Specification for Type PSM Poly(Vinyl Chloride) (PVC) SDR 51 and SDR 64 Sewer Pipe and Fittings F2763 16 Standard Specification for 12 to 60 in 300 to 1500 mm Dual and Triple ProfileWall Polyethylene (PE) Pipe and Fittings for Sanitary Sewer Applications.

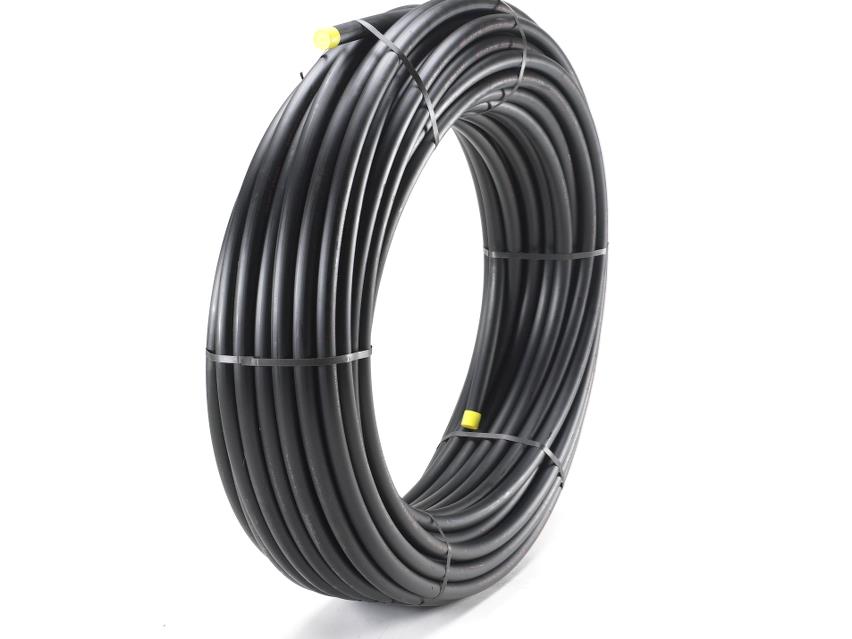

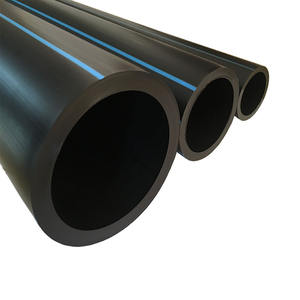

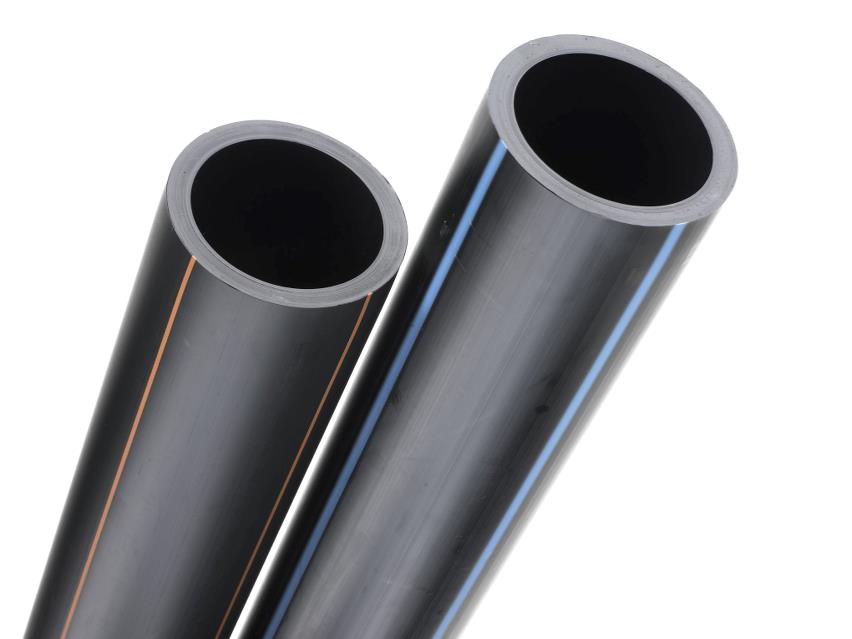

2" IPS SDR11 PE4710 Black Hdpe Water / Geothermal Pipe 500' foot coil Potable Water / Geothermal Pipe Rated 0psi @ 73 degree Fahrenheit SHIPPING COSTS ARE BASED ON COMMERCIAL ADDRESSES WITH FORKLIFT OR LOADING DOCKS RESIDENTIAL, JOBSITE, FARM OR REMOTE LOCATIONS MAY BE SUBJECT TO ADDITIONAL FEES. OsmaDrain offers you the widest choice of pipe and fittings for house building, industrial and commercial projects OsmaDrain systems are designed for use in gravity drainage and sewer installations in depths of up to 10 metres and are regulation compliant. The relationship between the dimensions of the pipes, the PE material classification and the working pressure rating are as shown in the Table below For simplicity, the dimensions of the pipe have been referred in terms of the Standard Dimension Ratio (SDR) where SDR = Outside Diameter/ Wall Thickness.

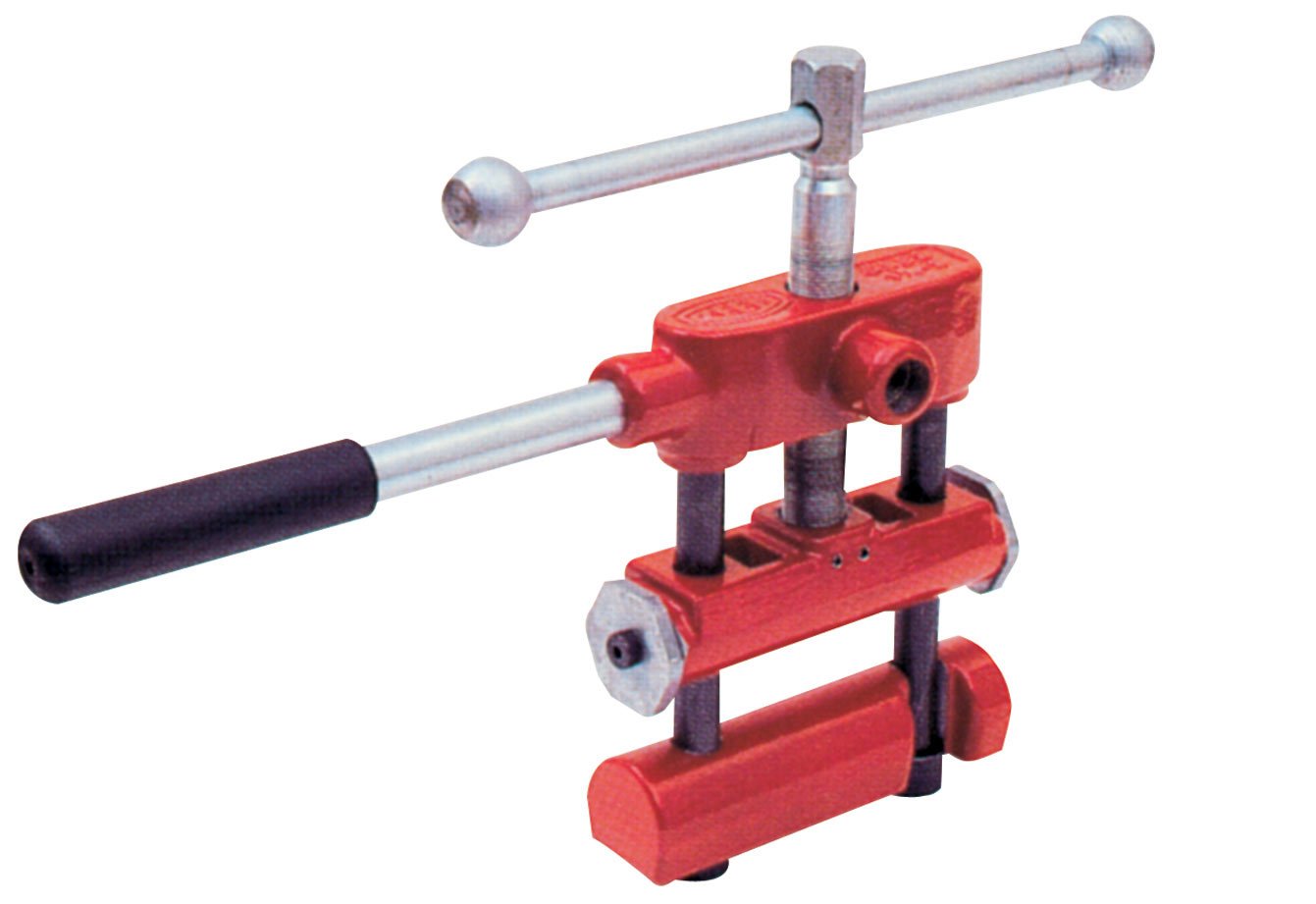

The relationship between the dimensions of the pipes, the PE material classification and the working pressure rating are as shown in the Table below For simplicity, the dimensions of the pipe have been referred in terms of the Standard Dimension Ratio (SDR) where SDR = Outside Diameter/ Wall Thickness. The HDPE Pipe Model, developed by the PE100 Association with inputs from many industry experts, includes the most frequently asked questions and answers (Q&A's) of all the elements through the pipe system value chain design, materials, construction, operation & maintenance, and environmental issues. All PE squeezeoff tools use positive stops to prevent damage caused by overclamping Multiple size/SDR settings on one pair of stops provide quick, convenient oversqueeze protection for standard pipe sizes REED SqueezeOff Tools for all US nominal pipe sizes follow these standards ASTM F1734, ASTM F1041, ASTM F1563.

INSULPEX is an ideal hydronic distribution pipe It consists of PEXa O 2 Barrier pipe surrounded by foam insulation and a durable corrugated PE outer jacket Available in one and twopipe configurations from sizes 25 to 140 mm, coils up to 1,640 ft The twopipe configuration combines supply and return pipes to streamline installation. Dimensions and weights of HDPE pipes PE 100, PN 16 and SDR 11 Table covers sizes from size mm to 1000mm Wall thicknesses are indicated in mm and weights are given in kg/mm. Vinidex Code Nominal Size DN (mm) SDR PN Material Colour Length (m) Weight (kg/length) 262 40 11 16 PE100 Black 150 646 50 11 16 PE100.

SDR pipe "Standard Dimensional Ratio" The SDR pipe is the "Standard Dimensional Ratio" and refers to the geometry of the pipeSDR is defined as the ratio of the nominal outside diameter to the nominal wall thickness SDR = dn/en Where dn is the nominal outside diameter of the pipe and en is the nominal (minimum) wall thickness of the pipe Therefore a higher SDR indicates a thinnerwalled. 125mm HDPE SDR 11 16 bar & SDR 17 10 bar 6 & 12 metre lengths, 50 & 100 metre coils 140mm HDPE SDR 11 16 bar & SDR 17 10 bar 6 & 12 metre lengths MADE TO ORDER QUANTITIES APPLY 160mm HDPE SDR 11 16 bar & SDR 17 10 bar 6 & 12 metre lengths, 50 & 100 metre coils 180mm HDPE SDR 11 16 bar & SDR 17 10 bar 6, 12 & 135 metre lengths, 50 & 100 metre coils. Pipe Weatherability GF Central Plastics black polyethylene pipe, P408/ 1600 psi for PE 3408, P608 or PE4710 SDR = Standard Dimension Ratio (OD/min wall) DF = Design Factor 12 360 031 287 110 14 360 031 303 16 360 031 319.

INSULPEX is an ideal hydronic distribution pipe It consists of PEXa O 2 Barrier pipe surrounded by foam insulation and a durable corrugated PE outer jacket Available in one and twopipe configurations from sizes 25 to 140 mm, coils up to 1,640 ft The twopipe configuration combines supply and return pipes to streamline installation. For PE pipe allow the pipe to be made to either controlled inside diameters or to controlled SDR (In the Case of Pipes Made to Standard OD’s) SIDR (In the Case lifting pipe off trucks with side rails, a minimum 11foot lift is required The staging area (operating space) must be clear of workers and obstacles and must. The SDR is a correlation between the pipe’s outside diameter and wall thickness This allows PEX to use the same hangers and supports used with copper, as well as any CTS insulations PEXa pipe is burst tested at an elevated pressure, and all pipe sizes will burst in the 800 psi range, nearly double the minimum requirement of ASTM F876.

OsmaDrain offers you the widest choice of pipe and fittings for house building, industrial and commercial projects OsmaDrain systems are designed for use in gravity drainage and sewer installations in depths of up to 10 metres and are regulation compliant. The HDPE Pipe Model, developed by the PE100 Association with inputs from many industry experts, includes the most frequently asked questions and answers (Q&A's) of all the elements through the pipe system value chain design, materials, construction, operation & maintenance, and environmental issues. Pipe, aluminum DWV pipe and components, and are not approved materials for use air Air admittance valves are forbidden to be used anywhere in the City only approved for use in an unenclosed structure, i e outdoor kitchen b Polybutylene, Polyethylene, and cross linked Polyethylene (PB, PE, PEX,.

SDR (Standard Dimension Ratio) is a standard attribute of all plastic pipes, indicating the relation of pipes’ outside diameter (OD) pipe to its’ wall thickness SDR = OD / Wall Thickness The most common SDR for yellow PE underground gas pipe is SDR11 and it is the size we offer at PexUniverse. Size used for identification only;. E 1 Sec C109 International Plumbing Code 1 The administrative officer is the building official Chapter 18 of this Code shall apply to enforcement and administration of this code in the same manner as it applies to the building.

Pipe Weatherability GF Central Plastics black polyethylene pipe, P408/ 1600 psi for PE 3408, P608 or PE4710 SDR = Standard Dimension Ratio (OD/min wall) DF = Design Factor 12 360 031 287 110 14 360 031 303 16 360 031 319. Purchased 5,400 feet of this 1" IPS SDR 9 poly pipe and am very pleased It's tough stuff and the 600ft rolls are relatively easy to handle (with two people) for a huge heavy roll of pipe, that is Connections via barbed fittings seem extremely strong (am using galvanized, brass, or stainless connectors) Excellent value and highly recommended. Chapter 6 Design of PE Piping Systems 158 (11) (12) WHERE PR = Pressure rating, psi HDS = Hydrostatic Design Stress, psi (Table 11) A F = Environmental Application Factor (Table 12) NOTE The environmental application factors given in Table 12 are not to be confused with the Design Factor, DF, used in previous editions of the PPI Handbook and in older standards.

SDR pipe "Standard Dimensional Ratio" The SDR pipe is the "Standard Dimensional Ratio" and refers to the geometry of the pipeSDR is defined as the ratio of the nominal outside diameter to the nominal wall thickness SDR = dn/en Where dn is the nominal outside diameter of the pipe and en is the nominal (minimum) wall thickness of the pipe Therefore a higher SDR indicates a thinnerwalled. CPVC Flowguard Gold Pipe from Charlotte Pipe is designed to distribute hot and cold water NSF listed product and convenient to install Asked by Rubio440 March 11, 2 Answers Yes, you can 1/2 in x 10 ft CPVC SDR11 Flow Guard Gold Pipe page 2 Customer Reviews 36 Customer Reviews 45 out of 5 stars overall. Smaller PE pipe can carry an equivalent DR11 water pipe was installed along the 1,400foot section of line extending over the steep slope to the flatland below The HDPE pipe solved the The project utilized 16inch SDR 11 and 26inch SDR11 HDPE pipe that met the criteria for pullback, ability to bend and to.

Polyethylene (PE) Polyethylene is the most common olefin material and is typically used in transporting water Because olefins cannot be joined with cements, barbed insert fittings are used for mechanical assembly PE is light weight, low cost, has excellent chemical resistance, low coefficient of friction, and is nontoxic Plastic Piping. ASTM D2241 Poly(Vinyl Chloride) (PVC) PressureRated. Purchased 5,400 feet of this 1" IPS SDR 9 poly pipe and am very pleased It's tough stuff and the 600ft rolls are relatively easy to handle (with two people) for a huge heavy roll of pipe, that is Connections via barbed fittings seem extremely strong (am using galvanized, brass, or stainless connectors) Excellent value and highly recommended.

ANSI size pipe is typically made to PE4710 which has pressure ratings of 333psi in SDR 7, 0psi in SDR 11 and 125 in SDR 17 ISO size pipe is typically made from PE100, which has pressure ratings of 25 bar in SDR 7, 16 Bar in SDR 11 and 10 Bar in SDR 17. Related Topics Fluid Flow and Pressure Loss Pipe lines fluid flow and pressure loss water, sewer, steel pipes, pvc pipes, copper tubes and more;. Related Documents ASTM D1785 and ASTM F441 PVC and CPVC Pipes Schedule 40 & 80 Standard dimensions and weight of PVC Polyvinyl Chloride and CPVC Chlorinated Polyvinyl Chloride;.

CPVCCTS FlowGuard Gold® SDR 11 Pipe Pressure Pipe Product Data Sheet CTSPIPE1018 (Current) PVCDWV Schedule 30 Thin Wall Pipe and Fittings List Price Sch P221TW (Future) PVCDWV and Schedule 40 Pressure PlainEnd Pipe Product Data Sheet PVC40PEPIPE7 (Current) PVC Schedule 40 BelledEnd Pipe Product Data Sheet PVC40BEPIPE. Smaller PE pipe can carry an equivalent DR11 water pipe was installed along the 1,400foot section of line extending over the steep slope to the flatland below The HDPE pipe solved the The project utilized 16inch SDR 11 and 26inch SDR11 HDPE pipe that met the criteria for pullback, ability to bend and to. 1 x 100' nsf 125 psi PE pipe sku , ($2928) 1 x 300' nsf 125 psi PE pipe sku , ($8784) 1" nsf 125 psi PE pipe, cut to length sku C, ($041) 1 x 100' nsf 160 psi PE pipe sku 143, ($3672) 1 x 150' nsf 160 psi PE pipe sku , ($5508) 1 x 0' nsf 160 psi PE pipe sku , ($7344) 1 x 250' nsf 160 psi PE pipe sku , ($9180) 1 x 300' nsf 160 psi PE pipe.

The HDPE Pipe Model, developed by the PE100 Association with inputs from many industry experts, includes the most frequently asked questions and answers (Q&A's) of all the elements through the pipe system value chain design, materials, construction, operation & maintenance, and environmental issues. The friction head loss (feet H 2 O per 100 feet pipe) in straight plastic pipes made of PVC, PP, PE, PEH or similar can be estimated from the table below Head losses are calculated for PVC pipe Schedule 40 by using the HazenWilliams equation and the HazenWilliams roughness constant c = 145 Note that minor loss in fittings must be added when calculating total head loss in a pipe line.
